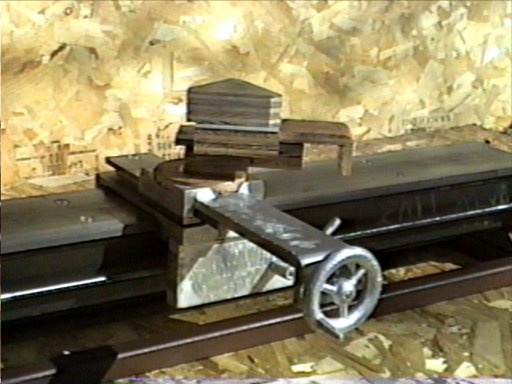

The cross-slide with the last wooden pattern pieces stacked on top. The compound swivel and compound slide are in the middle. On top is the 3-bit tool holder which I will be making. |
|
|

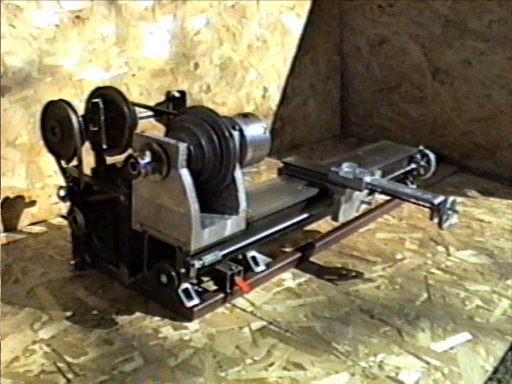

Since I have a larger headstock, I needed more travel on my cross-slide. In all, I have about 8" of usable travel, but nearly half of that will be past the centerpoint. Once the last pieces are cast and assembled, I'll see if I need to redesign. |
|
Since building the original cross-slide, I have redesigned a new unit
which provides much better support. |
|
|

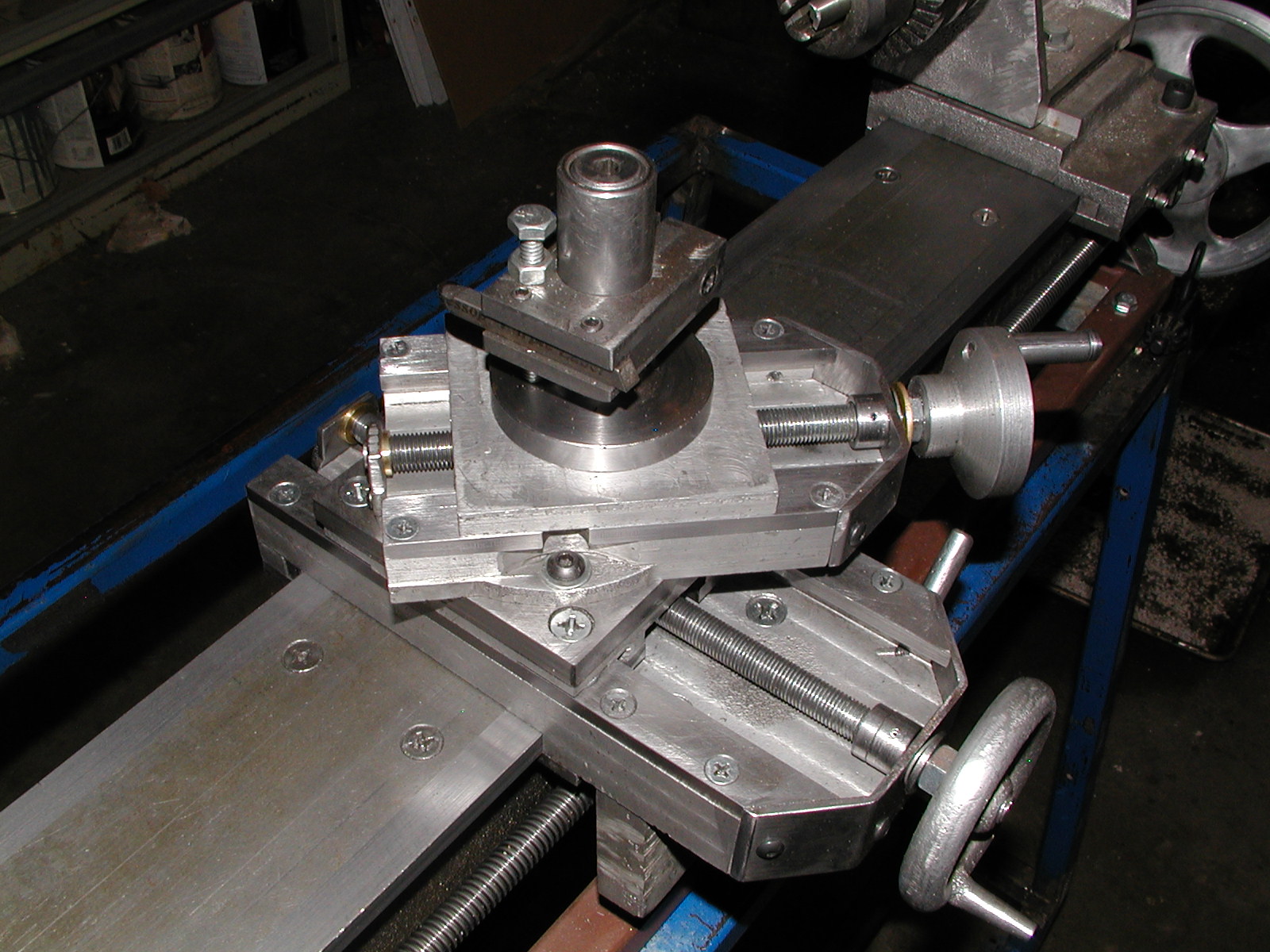

The new design, assembled on the lathe. This style puts the contact points out wider, helping to eliminate sideways flexing during cuts. Also the crank handles are in a fixed position, so they no longer travel in and out as the slides are adjusted. |
|
Click here to view the assembly of the primary slide. Click here to view the assembly of the secondary slide. |
|
